Scoreboard BASIC LED

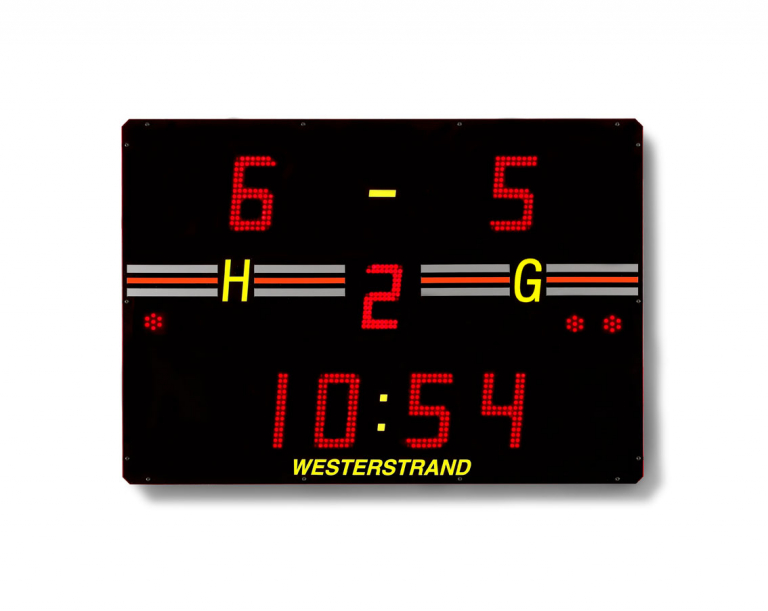

SCOREBOARD BASIC LED-140 - MULTISPORT
Scoreboard with built-in siren and red LED digits in SMD technology. The design makes it suitable for most indoor sports.
The board is operated from a remote unit with preprogrammed rules for each sport and is available for wireless or hardwire connection.
Match/Game time
Countup or countdown displayed using four digits, min and sec.
Score
000-999 (three digits per team)
Period
1-9 displayed with a single digit
Penalty, serve, foul
Displayed by dots, three per team
Time-out
Time-out countdown is shown instead of game time; number shown by dots.
Siren
Automatic signal at end of game, time-out and game break
The siren can be switched on at any time with the press of a button.
Character height
140 mm (score and time), 120 mm (period)

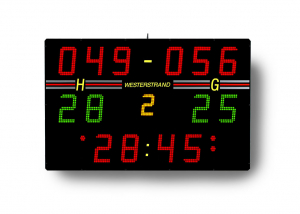

SCOREBOARD BASIC LED-190 - MULTISPORT
Scoreboard with integrated siren and LED digits in SMD technology. The design makes it suitable for most indoor sports.
The board is operated from a remote unit with preprogrammed rules for each sport and is available with wireless or hardwire connection.
Match/Game time
Countup or countdown displayed using four digits, min and sec.
Local time can be shown when no game is in progress.
Game in progress/Game break
Displayed by green/red dot.
Score
000-999 (three digits per team) for basketball and futsal
00-99 (two digits per team) for other sports.
Period
1-9 shown by single digit
Penalty
1 penalty time per team
Serve/Ball possession
Shown by arrows (red)
Team foul
1 digit per team for team fouls; shows the latest fouling player’s number (flashing) and foul in basketball.
Time-out
A time-out countdown is displayed instead of game time (not in basketball)
Time-outs used are shown by red dots (3 dots per team)
Siren
Automatic signal at end of game, time-out and game break
The siren can be switched on at any time at the press of a button.
Character height
190 mm (score, time, penalties and team fouls), 140 mm (period)
SCOREBOARD BASIC LED-190 - ICE HOCKEY
Scoreboard with integrated siren and LED digits in SMD technology.
The board is operated from a remote unit with preprogrammed rules and is available for wireless or hardwire connection.
Match/Game time
Countup or countdown displayed using four digits, min and sec.
Local time can be shown when no game is in progress.
Game in progress/Game break
Displayed by green/red dot.
Score
00-99 (two digits per team)
Period
1-9 displayed with a single digit
Time-out
A time-out countdown is displayed instead of game time.
Time-outs used are shown by red dots (3 dots per team).
Siren
Automatic signal at end of game, time-out and game break.
The siren can be switched on at any time with the press of a button.
Character height
190 mm (score and time), 140 mm (period)

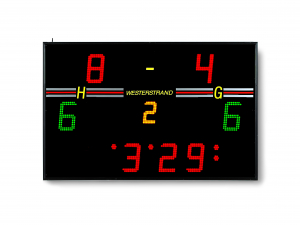

SCOREBOARD BASIC LED-190 - ICE HOCKEY WITH SHOTS
Scoreboard with integrated siren and LED digits in SMD technology.
The board is operated from a remote unit with preprogrammed rules and separate hand-held unit (supplied) for controlling shot statistics. The scoreboard is available for wireless or hardwire connection.
Match/Game time
Countup or countdown displayed using four digits, min and sec.
Local time can be shown when no game is in progress.
Game in progress/Game break
Displayed by green/red dot.
Score
00-99 (two digits per team)
Period
1-9 displayed with a single digit
Shots
00-99 (two digits per team)
Time-out
A time-out countdown is displayed instead of game time.
Time-outs used are shown by red dots (3 dots per team).
Siren
Automatic signal at end of game, time-out and game break.
The siren can be switched on at any time at the press of a button.
Character height
190 mm (score, time and shots), 140 mm (period)

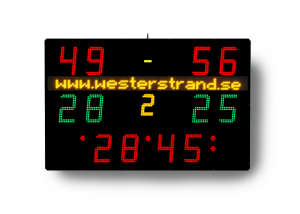

SCOREBOARD BASIC LED-190 - TEXT
Scoreboard with integrated siren and LED digits in SMD technology. The design makes it suitable for most indoor sports.
The board is operated from a remote unit with preprogrammed rules for each sport.
Includes an integrated text matrix line for displaying e.g. team names, alternating information or rolling text. The matrix line is controlled via windows-based software (RS485).
The scoreboard is available for wireless or hardwire connection.
Match/Game time
Countup or countdown displayed using four digits, min and sec.
Local time can be shown when no game is in progress.
Game in progress/Game break
Displayed by green/red dot.
Score
000-999 (three digits per team) for basketball and futsal
00-99 (two digits per team) for other sports.
Period
1-9 displayed with one digit
Text
Matrix, 18 characters
Penalty
1 penalty time per team
Serve/Ball possession
Shown by arrows (red)
Team foul
1 digit per team for team fouls; shows the latest fouling player’s number (flashing) and foul in basketball.
Time-out
Countdown of time-out is shown instead of game time (not in basketball)
Time-outs used are shown by red dots (3 dots per team)
Siren
Automatic signal at end of game, time-out and game break
The siren can be switched on at any time with the press of a button.
Character height
190 mm (score, time, penalties and team fouls), 140 mm (period), 94/82 mm (text)

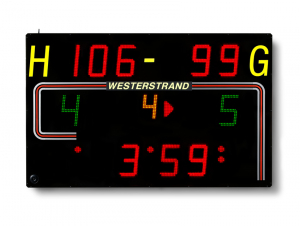

SCOREBOARD BASIC LED-250 - MULTISPORT
Scoreboard with integrated siren and LED digits in SMD technology. The design makes it suitable for most indoor sports.
The board is operated from a remote unit with preprogrammed rules for each sport and is available with wireless or hardwire connection.
Match/Gametime
Countup or countdown displayed using four digits, min and sec.
Local time can be shown when no game is in progress.
Game in progress/Game break
Displayed by green/red dot.
Score
000-999 (three digits per team) for basketball and futsal
00-99 (two digits per team) for other sports.
Period
1-9 shown by single digit
Penalty
1 penalty time per team
Serve/Ball possession
Shown by arrows (red)
Team foul
1 digit per team for team fouls; shows the latest fouling player’s number (flashing) and foul in basketball.
Time-out
A time-out countdown is displayed instead of game time (not in basketball)
Time-outs used are shown by red dots (3 dots per team)
Siren
Automatic signal at end of game, time-out and game break
The siren can be switched on at any time at the press of a button.
Character height
250 mm (score, time, penalties and team fouls), 190 mm (period)

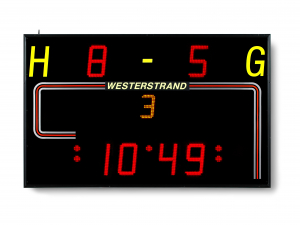

SCOREBOARD BASIC LED-250 - ICE HOCKEY
Scoreboard with integrated siren and LED digits in SMD technology.
The board is operated from a remote unit with preprogrammed rules and is available for wireless or hardwire connection.
Match/Game time
Countup or countdown displayed using four digits, min and sec.
Local time can be shown when no game is in progress.
Game in progress/Game break
Displayed by green/red dot.
Score
00-99 (two digits per team)
Period
1-9 displayed with a single digit
Time-out
A time-out countdown is displayed instead of game time.
Time-outs used are shown by red dots (3 dots per team).
Siren
Automatic signal at end of game, time-out and game break.
The siren can be switched on at any time with the press of a button.
Character height
250 mm (score and time), 190 mm (period)
SCOREBOARD BASIC LED-250 - ICE HOCKEY WITH SHOTS
Scoreboard with integrated siren and LED digits in SMD technology.
The board is operated from a remote unit with preprogrammed rules and separate hand-held unit (supplied) for controlling shot statistics. The scoreboard is available for wireless or hardwire connection.
Match/Game time
Countup or countdown displayed using four digits, min and sec.
Local time can be shown when no game is in progress.
Game in progress/Game break
Displayed by green/red dot.
Score
00-99 (two digits per team)
Period
1-9 displayed with a single digit
Shots
00-99 (two digits per team)
Time-out
A time-out countdown is displayed instead of game time.
Time-outs used are shown by red dots (3 dots per team).
Siren
Automatic signal at end of game, time-out and game break.
The siren can be switched on at any time at the press of a button.
Character height
250 mm (score, time and shots), 190 mm (period)
.jpg)
SCOREBOARD BASIC LED-250 - TEXT
Scoreboard with integrated siren and LED digits in SMD technology. The design makes it suitable for most indoor sports.
The board is operated from a control unit with preprogrammed rules for each sport.
Includes an integrated text matrix line for displaying e.g. team names, alternating information or rolling text. The matrix line is controlled via windows-based software (RS485).
The scoreboard is available for wireless or hardwire connection.
Match/Game time
Countup or countdown displayed using four digits, min and sec.
Local time can be shown when no game is in progress.
Game in progress/Game break
Displayed by green/red dot.
Score
000-999 (three digits per team) for basketball and futsal
00-99 (two digits per team) for other sports.
Period
1-9 displayed with one digit
Text
Matrix, 16 characters
Penalty
1 penalty time per team
Serve/Ball possession
Shown by arrows (red)
Team foul
1 digit per team for team fouls; shows the latest fouling player’s number (flashing) and foul in basketball.
Time-out
Countdown of time-out is shown instead of game time (not in basketball)
Time-outs used are shown by red dots (3 dots per team)
Siren
Automatic signal at end of game, time-out and game break
The siren can be switched on at any time with the press of a button.
Character height
250 mm (score, time, penalties and team fouls), 190 mm (period), 152/132 mm (text)

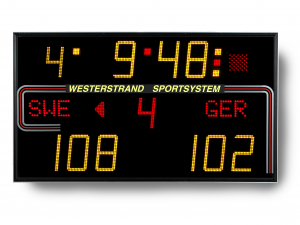

SCOREBOARD BASIC LED-300A - MULTISPORT
Scoreboard with integrated siren and LED digits in SMD technology. The design makes it suitable for most indoor sports.
The board is operated from the remote unit with preprogrammed rules for each sport and is available with wireless or hardwire connection.
Match/Game time
Countup or countdown displayed using four digits, min and sec.
Local time can be shown when no game is in progress.
Game in progress/Game break
Displayed by green/red dot.
Score
000-999 (three digits per team)
Period
1-9 shown by single digit
Team name
4 characters per team (via control unit)
Penalty/Foul
Shown by dots
Team foul/Player substitution
1 digit per team and one dot after 4 fouls
Serve/Ball possession
Shown by arrow (red)
Time-out
A time-out countdown is displayed instead of game time (not in basketball)
Time-outs used are shown by red dots (2 Yellow+ 1 dots per team)
Siren
Automatic signal at end of game, time-out and game break, and after the end of a 24-second countdown rule (in basketball).
The siren can be switched on at any time at the press of a button.
Character height
300 mm (score and time), 250 mm (period and team foul)

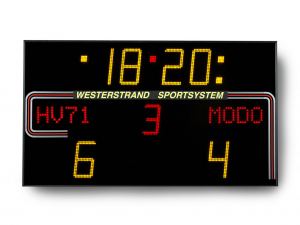

SCOREBOARD BASIC LED-300 - ICE HOCKEY
Scoreboard with integrated siren and LED digits in SMD technology.
The board is operated from a remote unit with preprogrammed rules and is available for wireless or hardwire connection.
Match/Game time
Countup or countdown displayed using four digits, min and sec.
Local time can be shown when no game is in progress.
Game in progress/Game break
Displayed by green/red dot.
Score
00-99 (two digits per team)
Period
1-9 displayed with a single digit
Team name
4 characters per team (operated from control unit)
Time-out
A timeout countdown is displayed instead of game time.
Time-outs used are shown by red dots (2 dots per team).
Siren
Automatic signal at end of game, time-out and game break.
The siren can be switched on at any time with the press of a button.
Character height
250 mm (score, time and shots), 250 mm (period)
