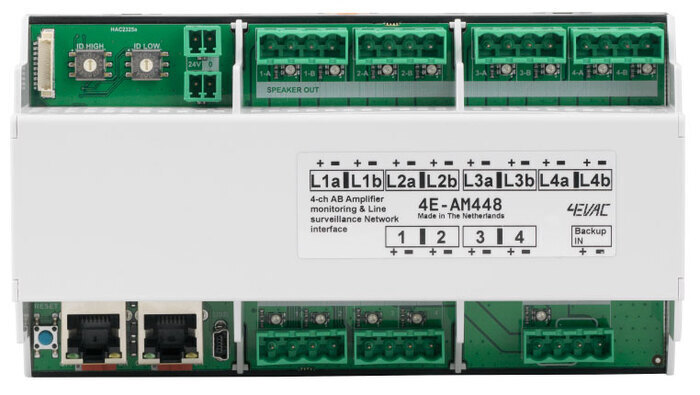

Amplifier & Loudspeakerline Monitoring module, 4x amplifier channels into 4x AB speakerline output, DIN liistule, EN54, 4EVAC
Kategooria:
Lisaseadmed
Tootekood:
4E-AM448
Tootja:
Kirjeldus:
Amplifier & Loudspeakerline Monitoring module, 4x amplifier channels into 4x AB speakerline output; - DIN-RAIL - 4 amplifier channel into 4 (A/B) speakerline surveillance module - Directly connected to a single channel output line of an amplifier. - High and low impedant loudspeaker detection. (With EOL) - Max. of 3x AM488 sharing 1x L-Net connection for communication and power purpose. (Without additional 24VDC) The AM488 can be remotely powered incase more than 3x AM488 units need to be linked to a single L-Net line. - Each switched output zone requires an EOL-device for line-integrity detection - RS485 datalink with - Max. load: 500W per channel - Redundant L-Net link, 2xRJ45 - Addressable: 0-255 - EN54-16
