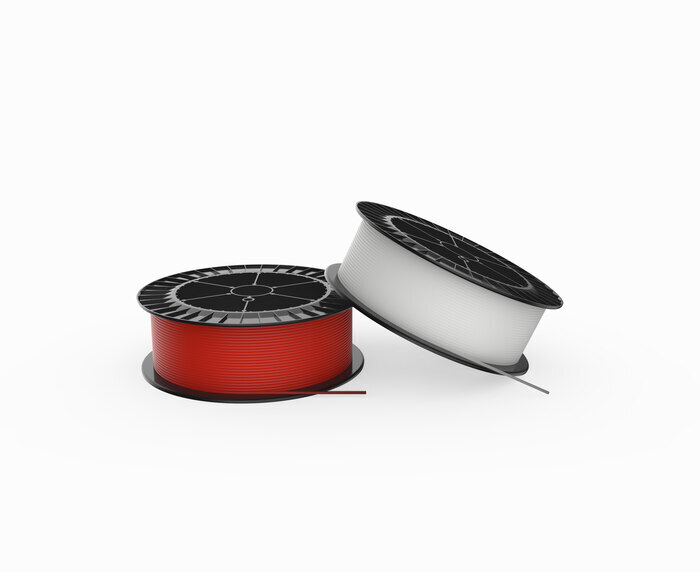

200 M - FLD105 Digitermokaabel +105°C PVC valge 200 m rull
Kategooria:
Digitermokaabel
Tootekood:
18-032
Kirjeldus:
Kinnitatakse mõlemast otsast. Lisaks tuleb trossi tostada laest konksuga iga 15m tagant. Paigalduskaugused: Seinast on 2meetrit. Omavahel tohib olla 4+4 meetrit ehk 8 meetrit.
Construction Overall insulated, twisted pair of tri-metallic cores
Insulation 1kV tested protective outer coat
Approvals CE Marked, UL Listed
Maximum Zone Length 3,000m (10,000ft)
Overall Diameter 3.60mm ± 0.12mm (0.142” ± 0.005”)
Minimum bend radius 50mm (2”)
Max Voltage Rating 30Vac, 42Vdc
Resistance ~100Ω/km (29Ω/kft) per leg
Velocity of Propagation ~55%
Capacitance 88 – 150 pF/m (26 – 45 pF/ft)
Inductance 540 – 1050 nH/m (165 – 320 nH/ft)
