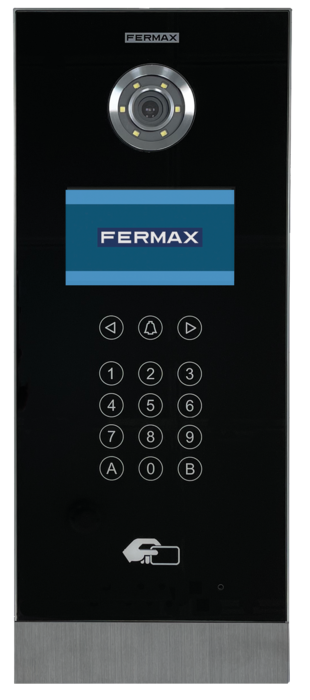

MILO MEET PANEL

System:

CPU: Quad-core Cortex™-A7 1.5GHz
GPU: Mali400MP2
FLASH: 8GB
SDRAM: 512MB

Screen:

4.3” Color TFT
Resolution 480 x 272 pixel
View angle: 110º H, 90º V
Contrast: 400/1
Brightness: 200cd/m2

Audio Features:

G.711 codec
Audio OLR> 15dB

Camera:

1/3” CMOS Color
View angle: Horizontal 105º, Vertical 55º
1.2 Mega Pixels
Minimum Illumination 0.5 LUX. Automatic white led activation.

Built-in MIFARE Classic reader:

4-bytes cards only (see ref. 52740/52750)

Power Consumption:

On standby: 290 mA
Working: 490 mA
Heater enabled*: additional 170mA

Working voltage:

PoE**
12 Vdc

Connectivity:

Ethernet RJ-45 Connector
RS485 connection port for lift control and aux relays module.
Secondary access control reader connection (Wiegand 26)
Built in web server for configuration and management.

Working Environment:

Temperature: -25ºC to +70ºC
Humidity: 10 – 90% (non-condensing)
IP 65 / IK 07

* An internal heating resistant is connected automatically when temperature is below -20ºC

** In cold places below -20ºC use a 12Vdc 2A power supply instead of PoE.

Dimensions (h x w) 389x155 mm

Back cover for installing 3rd party access control readers: External: 109x58mm

Technology: MEET

Weight: 1.95 kg

Measures of the packed product: 46,8x10x21 cm
