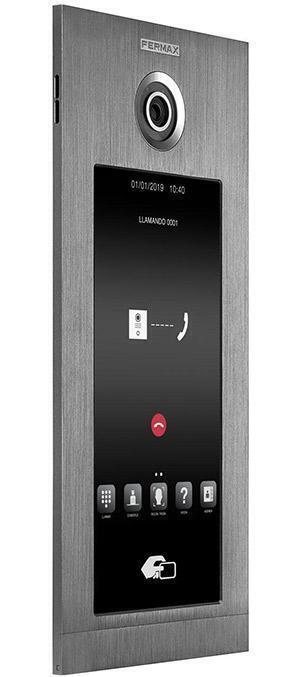

KIN TOUCH PANEL MEET

System:

CPU: Quad-core Cortex™-A7 1.5GHz
GPU: Mali400MP2
FLASH: 8GB eMMC Flash
SDRAM: 1GB DDR3L

Screen:

10,1” Color TFT
Resolution 1024 x 600 pixel
View angle: 130º H, 140º V
Contrast: 800/1
Brightness: 300cd/m2

Audio:

Codec G.711/G 729

Camera:

1/3” CMOS Color
120º diagonal Lens, Horizontal 105º, Vertical 55º
1280 x 720 pixel
Minimum Illumination 0.5 LUX. Automatic white led activation
AWB

Power consumption:

On standby: 250 mA.
Working: 1000 mA.
Standby with heater active: 750 mA (*).
Working with heater active: 1500 mA (*).

Working voltage:

12 Vdc (recommended in places below -20º C).
PoE

Connectivity:

Ethernet RJ-45 Connector.
RS485 connection port for lift control and auxiliary relays module.
Secondary access control reader connection (Wiegand 26).
Built in web server for configuration and remote management.

Environmental characteristics:

Temperature: -25 ºC + 70 ºC.
Humidity: 10 – 90% (non-condensing).
IP 54.

Built-in MIFARE Classic reader:


4-bytes cards only (see ref. 52740/52750)

* The heater is automatically activated at -20ºC (approximately)

Technology: MEET

Measures of the product: 405 X185 X 50 mm

Weight: 2.297 kg

Measures of the packed product: 14x46,5x25,5 cm
