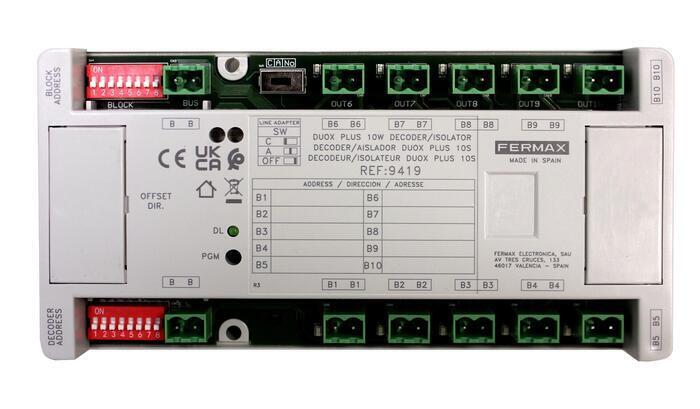

10W DUOX PLUS DECODER/ISOLATOR

TECHNICAL CHARACTERISTICS

The assembly can be done both by screw fixing, and by installation on a DIN rail.
Dimensions: DIN 10 rail.
Removable strips to facilitate wiring and installation.

Supply voltage: 24 Vdc
Standby consumption: 0.912 W
Maximum consumption: 1,368 W
Note : Max 1 A per output

COMPATIBILITY

NOTE 1: the decoder supports the functions of auto-start, F1, F2, call to guard unit and second channel, taking into account that in each decoder only one channel can be active at a time.

NOTE 2 : The decoder is compatible with Duox and Duox Plus installations, but not all functions are compatible with all versions of Duox Plus terminals, as can be seen in the table included in the technical manual.

Technology: DUOX

Measures of the product: 90 x 175 x 37 mm

Weight: 0.296 kg

Measures of the packed product: 6,5x18,1x9,6 cm
