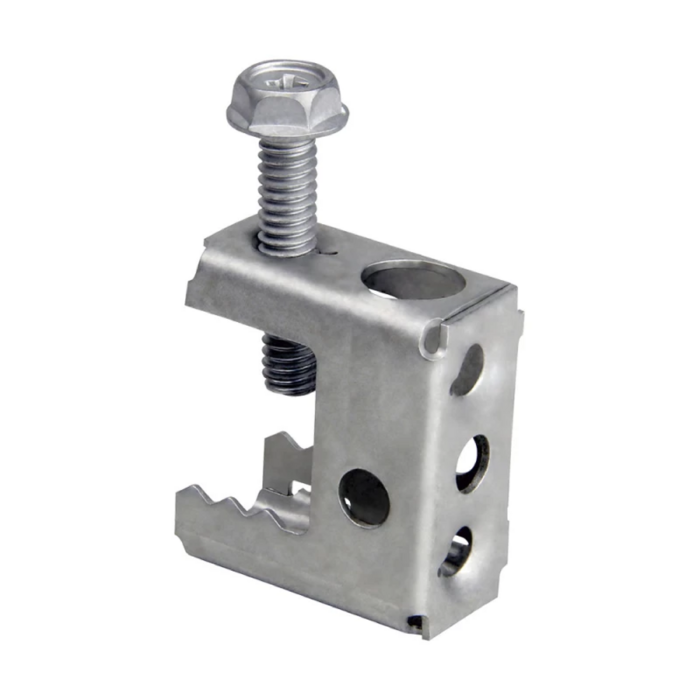

The CMV CNBOP fire approved flange beam clip is a fast and stable solution for fixings cables and pipes to metal beams with a flange width up to 16mm. Thanks to the quick assembly without drilling or welding simply by tightening the screw, the CMV beam clip helps you save time during installtion.

Thanks to two M6- internal threads, two clearance holes with a diameter of 6,3 mm and one clearance hole with a 10,7 mm diameter the CMV M6 setscrew flange beam clip offers multiple options to install threaded elements, rods,wires or cable ties to beam flanges.

Benefit from 45 kg of safe working load.

Available in zinc aluminum grey flakes for high resistance to corrosion (480Hr. SST).

The zinc flake coating makes the beam clip suitable for indoor as well as outdoor, humid and corrosive environments and resistant to corrosion in salt water mist for up to 480 hours (DIN 50021).

Applications

• Suspended structure
• Lighting
• Signage
• Cable installation

Key features:

• Easy and fast installation saves time and money
• Quickly installs with just a hammer without drilling nor welding
• Fire approved according to CNBOP lab.
• Special coating grey aluminium zinc flakes 480 SSH resistance
• Zinc flake clamps and clips restistant to corrosion in salt water mist for up to 480 hours (DIN 50021)
• Multifunctional due to two M6- internal threads, two clearance holes 6,3 mm and one clearance hole 10,7 mm

Base materials:

• Steel beam/purlin

Product on Order
